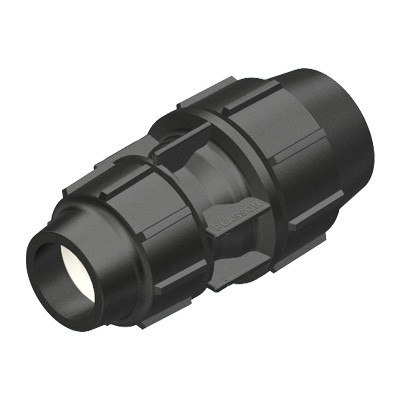

מצמד מעבר 75 × 63
הוספה למועדפיםמאפייני מוצר
- שםמצמד מעבר 75 × 63
- מק"ט871106075063
- קוטר75 mm
- משקל [גרם]966 g
- תקניםISO 14236, AS/NZS 4129, ISO 7/1, BS 21, DIN 2999, UNI 9561, NEN 3258, AS 1722, DIN 8076
- טמפרטורות הפעלהMaximum temperature of use for fittings and valves is the same as that for polyethylene pipe and they are not intended for use in hot water applications. They will withstand sub-zero temperatures.
- חומר גלם אטםEPDM
- חומר גלם אוםPolypropylene, high-grade copolymer.
- Installation_NotesExcessive torque during tightening can cause nut deformation and result in joint failure; therefore use a Plasson wrench or other spanner with handle length not greater than 46 cm. If fittings are reused, avoid pull outs by ensuring the split ring is sharp and bites into the pipe. Alternatively replace split ring.
מידות (המידות במ"מ)
- d75 mm
- D163 mm
- E132 mm
- E1_Cap113 mm
- l141 mm
- l1112 mm
- H261 mm
- יחידות בקרטון18
